Cold AND Clean Room Planking systems AND accessories
A Working Solution
Maxmade Limited stocks a large range of cold and clean room accessories that compliment its hygienic cladding range, as well as for use with composite panel temperature controlled buildings.
These include:
Coving, end caps and corners
Skirting, end caps and corners
Dunnage and bump rails
Channels
Angles
Nylon bolts and washers
Vision panels
Hygienic cladding sheets and planks.
Ideal For
Cold Rooms, Food Preparation Areas and Clean Rooms
Coving Range
Our two part coving gives a quality finish to the wall to wall and wall to ceiling joints. A robust aluminium backer is used to hold the PVC coving, giving you a visually pleasing finish with an easy cleanable corner as required by food and chemical buildings regulations.
The 2 part coving comes in three sizes, some of which have ancillary items such as end caps and corners. The Backer section is extruded aluminium. The front coving is a prime grade pvc in white.
Coving Small
The EX40 Flexi-edged 2 part cove is available in 4 mtr lengths.
This section comes with internal three way corners, external two way corners and end caps ancillary parts.
Coving Medium
The EX54 Flexi-edged, and EX11 Rigid-edge 2 part cove is available in 4 mtr lengths.
This section only comes with internal three way corners.
Coving Large
The EX14 Flexi–edged 2 part cove is the largest section, available in 4 mtr lengths.
This section comes with internal three way corners, external two way corners and end caps ancillary parts.
Skirting Trims
Uses
Made from prime pvc, the skirting sections are in either white or black. They are supplied in 4 mtr lengths.
The double skinned skirting system works in conjunction with the two part coves to give a aesthetically, but functional finish to wall to floor joints.
For the EX15 and EX80 Skirting range a series of ancillary sections are available.
Aluminum Coving Range
Our two part coving gives a quality finish to the wall to wall and wall to ceiling joints. A robust aluminum backer is used to hold the aluminum coving in place, giving a visually pleasing finish with a easy cleanable corner as required by food and chemical regulations.
The 2 part coving comes in 80mm diameter and comes with a 3 way internal corners to suit.
We stock this in mill finish and can powder coat to your colour requirements.
Large
The ANGALU 01 is available in 4 mtr lengths. This section comes with internal three way corners, and is used with the H40 Aluminium backer section.
Wall Protection Trims
Bump Rails
WP100 is available in 4mtr lengths, with external corners and stop ends. Coloured inserts or strips are available to highlight different risk areas.
CLADDING PROFILES FOR HYGIENIC ENVIRONMENTS
Maxmade Limited have been supplying the Clean Room and Temperature Controlled Building Industry since 1973 supplying specialist ceiling support systems and sheet metal fabrications.
Since this time we have gained a wealth of experience, and has developed its range of products to meet the new demands of this industry, and that of the Food Preparation Industry, including the supply of quality fixings and sealants, wall and door protection systems, and wall and ceiling cladding systems.
A WORKING SOLUTION
Hygienic Quality PVC Sheets. 2mm,2.5mm and 3mm thick.
Coloured PVC sheets and trims - available upon request. Please allow for additional lead times.
8mm solid hidden fixing wall planking.

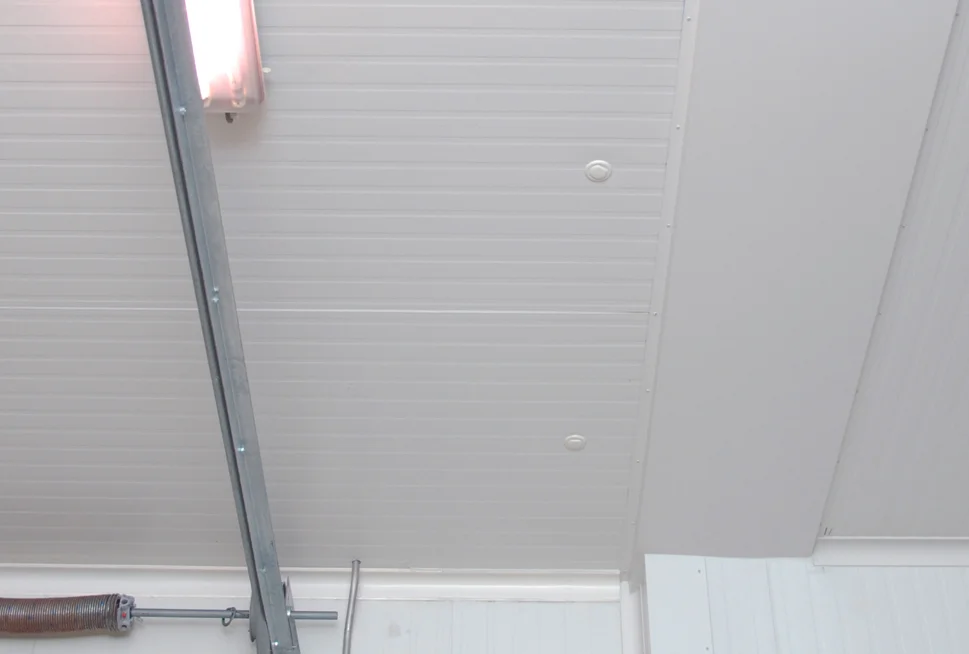

10mm Hollow section hidden fixing ceiling planking.
Plus all ancillary trims and adhesives.
Our products are designed to suit varied applications. From the over-cladding of a small butchers shop, with cracked broken tiles and uneven walls, the over-cladding of old tired damaged composite panels in an abattoir, to industrial sized clean rooms. Maxmade can supply the solution to your cladding needs.
Cold Store Rooms,
Food Preparation Areas and Clean Rooms
P100 HYGIENIC CLADDING
Solid slat manufactured in heavy duty PVC—2.5mm thick.
333mm wide—standard length of 3000mm. Special lengths to order.
Corrugated finish prevents bending and deformation of walls.
Uniform finish, no fixings seen due to hidden fixing system.
Protects panels from knocks.
Protects from oxidation.
Piping and wall lining for building works.
Refurbishment of cold rooms.
All types of facing.
Easy to clean.
No need to paint or tile walls.
Low maintenance.
P300 HYGIENIC CLADDING
Solid slat manufactured in heavy duty PVC—8mm thick
333mm wide—standard length of 3000mm. Special lengths to order.
High Impact strength
Uniform finish, no fixings seen due to hidden fixing system.
Impact resistant.
Fire Classification M-1.
Hygienic joints, easy assembly with
Hidden fasteners.
Easy to clean.
Suitable for food factory environments.
Non-oxidable.
Maintenance free.
Protects walls from steam and moisture.
Resistant to fats and acids.
LAMAS
USES:
Hygienic joints, easy assembly with hidden fasterners
Easy to clean
Suitable for food factory environments
Non-oxidable
Maintenance free
Protects walls from stream and moisture
Resistant to fats and acids
Fire Classification M-1
FEATURES:
Hollow section slat manufactured in heavy duty PVC
Overall 10mm Thick333mm wide (standard lenght of 3000mm)
Special lengths to orderUniform finish, no fixings seen due to hidden fixing system
PVC
USES:
Typical applications of the PVC hygienic cladding include food, labratory and chemical buildings
FEATURES:
Meets fire resistance classification BS476: Part 7: Surface spread of flame: Class 1 BS476 Parts 6 & 8: Class O and European Union ISO 13501-1 B s3 clo.
Approved for use with foodstuffs as specified in European Directive 97/48/EC
Does not contain any of the banned or restricted substances on the Ericsson List
Can prevent and reduce colonies of specified micro organisms
Complies with European Directive 2002/95/EC regarding concentrations of heavy metals and heavy metal compounds of lead, cadmium mecury and hexavelent chjromium and concentrations of flame retardants based on polybronominated bephenyls and polybrominated diphenyl ethers
PVC COLOURED SHEETS
Available Colours: Red Wine, Red, Dark Pink, Orange, Lime Green, Green Grape, Avocado, Ocean Blue, Medium Grey, Black
Typical applications of PVC coloured sheets include the hygienic wall cladding for food, labratory and chemical buildings, recreational and public facilities and general decorative cladding.
FEATURES:
High electrical and thermal insulation
Non - Toxic
Available in 3000mm x 1220mm x 2.5mm
SheetsMatching silicone and trims available
Excellent chemical resistance
Withstands repeated cleaning cycles
High impact strength
Easily fabricated and formed
Highest fire rating
