Meat Rails and freezer systems

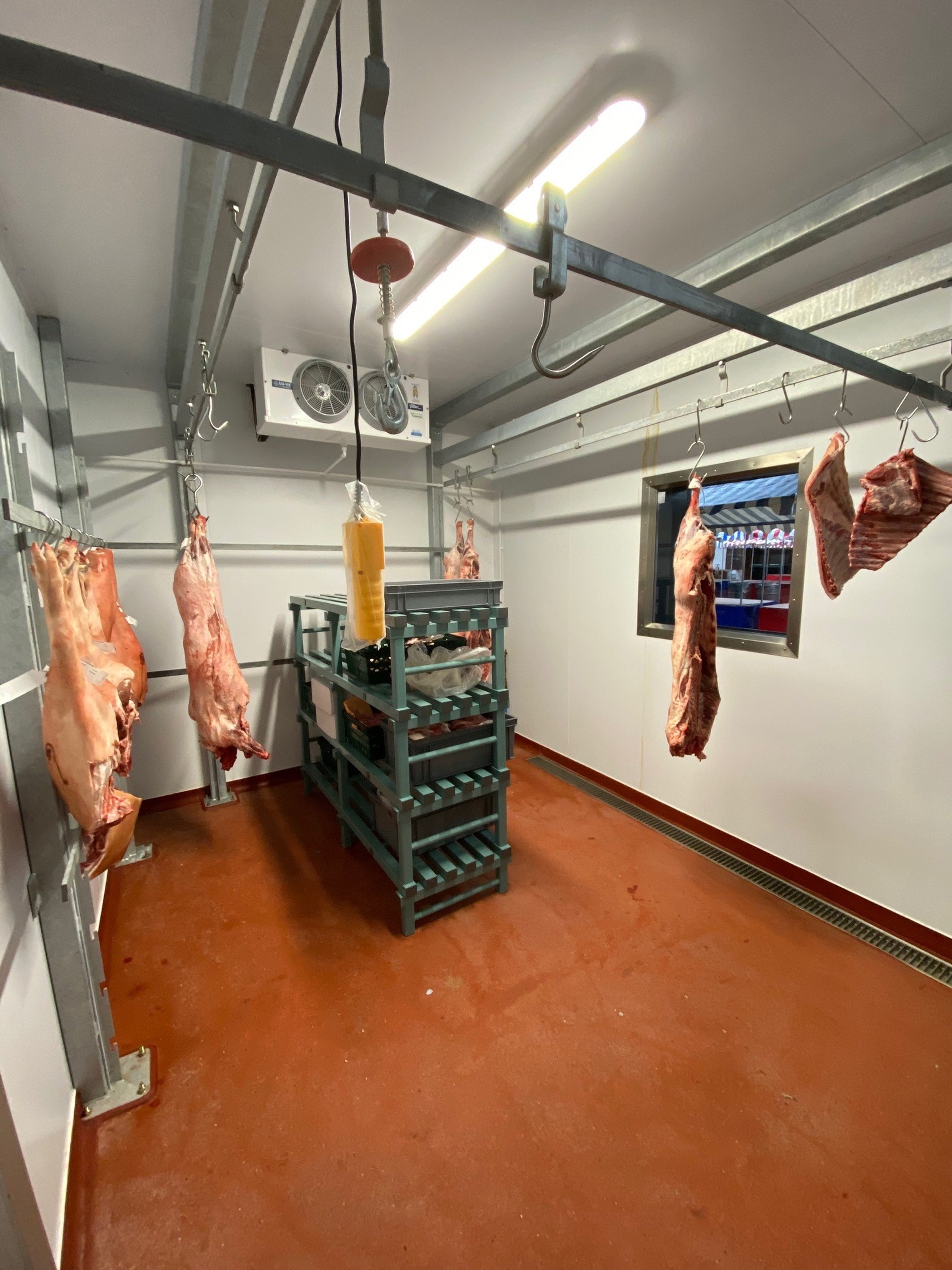

Basic Meat Rail Systems
SLOTTED TEES AND JOISTS
40x40x5 supplied in two lengths of 2200mm & 2400mm. The Tee’s are pre-drilled to allow fixing to the composite panel walls, and pre-cut with slots at 200mm centres for side rail clips and shelf arm fittings. Joists are cut to suit the required length to span the cold room. They can be supplied in 3 sizes to suit span and weight to be carried:
102mm x 51mm
127mm x 76mm
152mm x 76mm
Joists and Tees are supplied with M10 Bolts, Nuts and Washers, and screws to fix Tees to the panel, both items are also galvanised.
ADDITIONAL COMPONENTS
Side Rail Clips - Clipped onto the Tee’s to allow a single run of a 40x10 galvanised bar
Shelf Arms - Attached to the slotted Tees, these provide adjustable shelving. Available in two sizes of 300mm & 325mm.
(30x8 galvanised shelf bars are fitted into these slots)
Cranked Hangers - Galvanised cranked hangers are bolted onto the joists to provide hanging points for meat rails
Roller Hooks - Galvanised roller hook with a stainless hook
Threaded Hangers - Galvanised threaded hangers come with a 300mm long thread, which can be bolted to support beams above the coldroom panel
SPECIAL MEAT RAIL SYSTEMS
A basic meat rail system can be manufactured to suit specific needs, such as free-standing systems, multiple rail systems, using a “goalpost support”, such as special powder coated finishes give a more aesthetically pleasing finish and made to measure supports for irregular shaped rooms.
WEIGHT LOADING (5:1 SAFETY FACTOR)
AND ASSEMBLY GUIDANCE
Maximum recommended distance between Tee and Joist supports is 1000mm.
(Tees must be sat on floor and screwed back into wall tight)Cracked and Threaded Hangers point load: SQL 175kg
Side Rail Clip Point Load: SWL 50kg
Shelf Arms Point Load: SWL 50kg
6mm Hook: SWL 30kg
10mm Hook: SWL 70kg
12mm Hook: SWL 145kg
PRODUCT FEATURES
Stainless Hooks - Stainless Round Bar
(1.4301 10088-3)Tee Sections.- Mild Steel S275 Galvanised
(BS EN 10345:2009)M10 Nuts & M10 Washers
(Din 934 & Din 125)Thread, Cranked Hangers, Side Clips and Shelf Arms
(BZP FE/ZN/8C1A)(Supplied under ISO 9001 Management System)
PRODUCT WEIGHTS
2200mm Tee - 6.5kg
2400mm Tee - 7kg
102mm Joist* - 10.25kg
128mm Joist* - 14.8kg
152mm Joist* - 17.9kg
40x10 Meat Rail Bar* - 3.15kg
30x8 Shelf Bar* - 2kg
Cranked Hanger - .6kg
Threaded Hanger - .65kg
Side Rail Clip - .12kg
12” Shelf - .65kg
15” Shelf - .75kg
(Asterisk * Represents Weights Per Metre)
